A slow startup, long app launches, and a constantly spinning hard drive can make an otherwise capable computer feel overdue for replacement. Before buying a new system, learning how to install sata ssd storage can be one of the most practical upgrades you can make. A SATA solid-state drive gives desktops and many laptops faster access to files, applications, and operating systems while using a familiar, affordable drive format.
For most everyday users, the installation itself is manageable with a screwdriver, a little care, and the right connection cables. The part that deserves attention is choosing the correct drive, protecting your data, and making sure your computer recognizes the new storage after installation.
Confirm You Need a 2.5-Inch SATA SSD
Not every SSD uses the same connection. A standard SATA SSD is usually a flat, 2.5-inch rectangular drive, about the size of a deck of cards. It connects with two separate connectors: one SATA data cable for communication with the motherboard and one SATA power cable from the power supply.
This is different from an M.2 SSD, which looks like a small circuit board and slides directly into an M.2 slot on the motherboard. Some laptops support only M.2 storage, while many older laptops and most desktop PCs can use a 2.5-inch SATA SSD. Check your device manual, current drive bay, or existing storage drive before ordering.
If you are upgrading a laptop with a removable 2.5-inch hard drive, a 2.5-inch SATA SSD is typically the direct replacement. Desktop owners may have more flexibility, but they should still confirm that the PC has an open SATA port and an available SATA power connector.
What You Need Before You Start
Set up a clean, well-lit work area and shut down the computer completely. Unplug the power cable from a desktop. For a laptop, disconnect the charger and, if the battery is removable, remove it before opening the device.
Have these items ready:
- A compatible 2.5-inch SATA SSD with enough capacity for your files and applications
- A small Phillips-head screwdriver
- A SATA data cable for a desktop, if one is not already available
- A 2.5-inch mounting bracket or drive tray if your desktop case does not include one
- A USB-to-SATA adapter or enclosure if you plan to clone your existing drive before installation
Choose Between a Fresh Start and Cloning Your Drive
Before you install the SSD, decide how you want to use it. A fresh installation means installing a new operating system on the SSD and moving only the files you need. This often produces the cleanest result, especially if your current computer is cluttered with unused programs or has been running slowly for years.
Cloning copies your existing drive, including the operating system, applications, settings, and files, to the new SSD. It can save time because the computer should look familiar when it starts from the SSD. However, the new drive must have enough usable capacity for the data currently stored on the old drive. For example, a 500GB SSD can usually accept a clone from a 1TB hard drive only if the used space is below the SSD's available capacity.
For a laptop with one storage bay, connect the new SSD through a USB-to-SATA adapter before opening the computer if you want to clone. Complete the cloning process first, then swap the drives. If you are installing the SSD as extra storage in a desktop, you can install it first and clone later if needed.

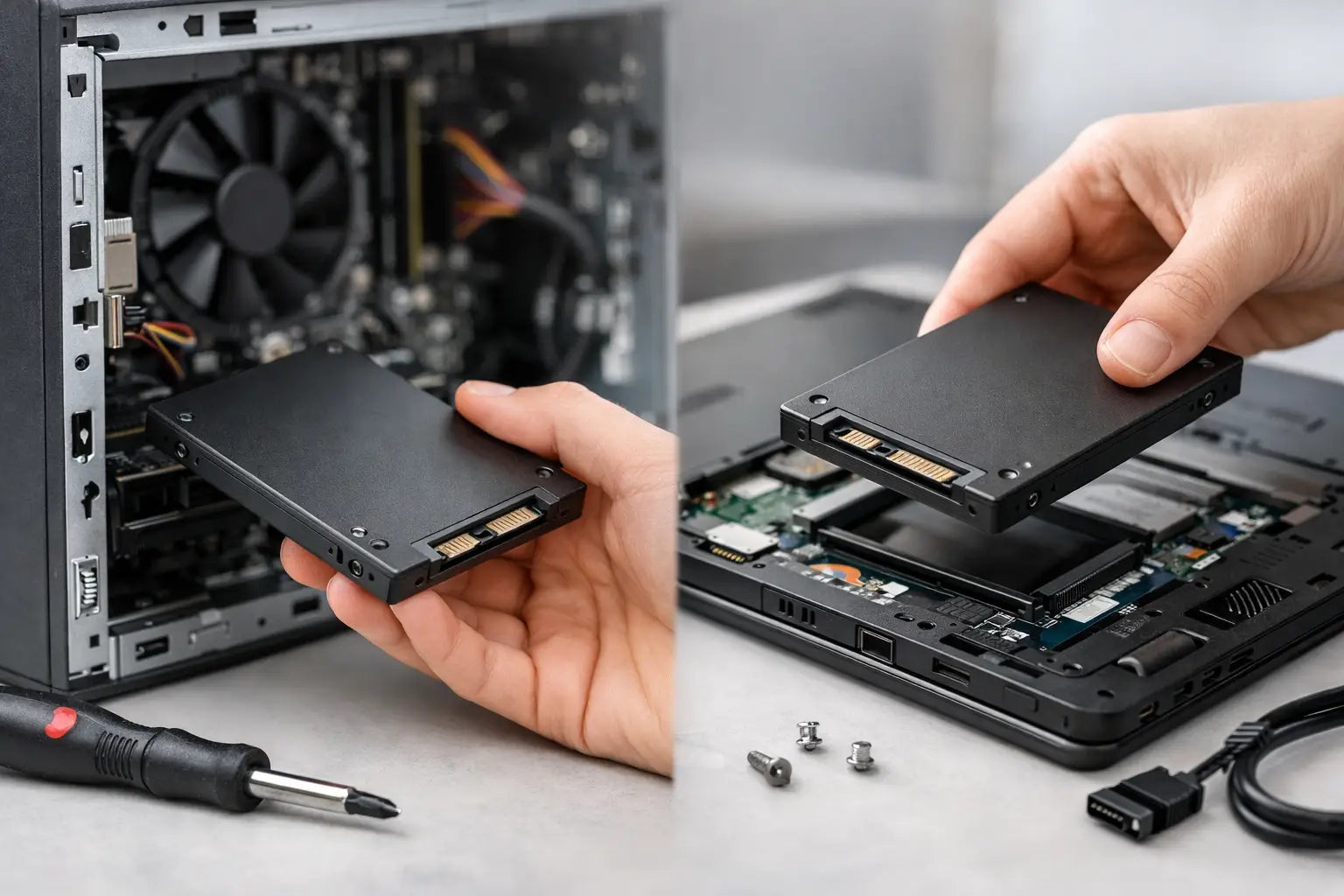

How to Install SATA SSD in a Desktop
Open the desktop case by removing the side panel. Touch an unpainted metal section of the case before handling components to reduce static electricity. Avoid working on carpet if possible, and handle the SSD by its edges rather than touching its connectors.
Find an open 2.5-inch drive tray, mounting point, or bracket. Some cases have dedicated SSD mounts behind the motherboard tray, while others require a 2.5-inch-to-3.5-inch bracket to fit the drive in a larger bay. Secure the SSD with the included screws. Do not force it into place or overtighten the screws.
Next, connect the narrow SATA data cable from the SSD to an open SATA port on the motherboard. The motherboard ports are commonly grouped along the lower-right edge of the board and may be labeled SATA. Connect a wider SATA power plug from the power supply to the SSD. Both connectors are keyed in an L shape, so they only fit in the proper orientation.
Before closing the case, check that both cables are fully seated and that no cable is pressing against a cooling fan. Replace the side panel, reconnect power, and start the computer.
Installing a SATA SSD in a Laptop
Laptop installation varies more than desktop installation, so locate the manufacturer instructions for your exact model when possible. Some laptops have a service door on the bottom for easy drive access. Others require removing the entire bottom cover, which may involve several screw lengths and delicate plastic clips.
After opening the laptop, locate the existing 2.5-inch drive. It may sit in a metal caddy and connect directly to a SATA socket or through a short ribbon cable. Take a photo before removing anything so you can confirm the original orientation later.
Remove the screws holding the drive caddy in place, carefully disconnect the old drive, and transfer the caddy or mounting rails to the new SSD if required. Slide the SATA SSD into the connector without forcing it, secure the caddy, and reinstall the bottom cover. Reconnect power and turn the laptop on.
A slim laptop can be a special case. Even if it has a 2.5-inch bay, it may require a 7mm-thick SSD rather than a thicker 9.5mm drive. Check clearance before purchase. If opening the device would affect a warranty or requires removing components you are not comfortable handling, professional installation can be the smarter choice.
Make the New SSD Appear in Your Computer
If the SSD is a secondary drive, the computer may start normally but the drive will not show up in File Explorer until it is initialized and formatted. In Windows, right-click the Start button and open Disk Management. Windows should prompt you to initialize the new disk. For most modern computers, choose GPT as the partition style.
After initialization, find the unallocated space for the SSD, right-click it, and select New Simple Volume. Follow the prompts to assign a drive letter and format the drive as NTFS. Give it a clear name such as Storage, Projects, or Media so it is easy to identify later.
If you installed the SSD as the main boot drive after a fresh operating system installation or clone, enter the computer's BIOS or UEFI settings if it does not boot from the SSD automatically. The startup screen usually displays the key to press, often Delete, F2, or F12. Set the new SSD as the first boot device, save changes, and restart.
If Your SATA SSD Is Not Detected
A missing drive is usually a connection or setup issue, not a failed SSD. Start by powering the computer off and checking both SATA connections. On a desktop, try a different SATA data cable, another SATA port on the motherboard, or another power connector from the power supply.
For laptops, confirm the drive is fully inserted and that any ribbon cable is seated correctly. If the SSD appears in the BIOS but not in Windows, it likely needs initialization in Disk Management. If it does not appear in BIOS at all, revisit the physical connection and confirm that the laptop supports a 2.5-inch SATA drive.
When cloning, disconnect the old drive temporarily after the clone is complete if the computer keeps starting from it. This makes it easier to verify that the new SSD is truly bootable before using the old drive as backup storage.
Get More Value From Your Storage Upgrade
Once the SSD is running, keep some free capacity available. SSDs perform best when they are not filled to the limit, and leaving roughly 10% to 20% free gives the drive room for normal maintenance and future files. Move large videos, archived photos, or less-used games to secondary storage when space becomes tight.
A SATA SSD may not match the highest speeds of a newer NVMe drive, but it is still a major step up from a traditional hard drive for everyday work, studying, streaming, and home-office tasks. For a practical upgrade path, TechIQ Tienda can help you pair storage hardware with the accessories that make your workspace more useful.
Take a few minutes after installation to confirm your files, restart the computer once, and enjoy the difference. The best upgrade is often the one that makes every ordinary task feel less like waiting.
